CS AutoCav

Upgrade residential and commercial interiors with the CS AutoCav® automatic sliding door system, a premium plug-and-play solution for smooth, quiet operation in high-use spaces like pantries, closets, laundry rooms, and offices.

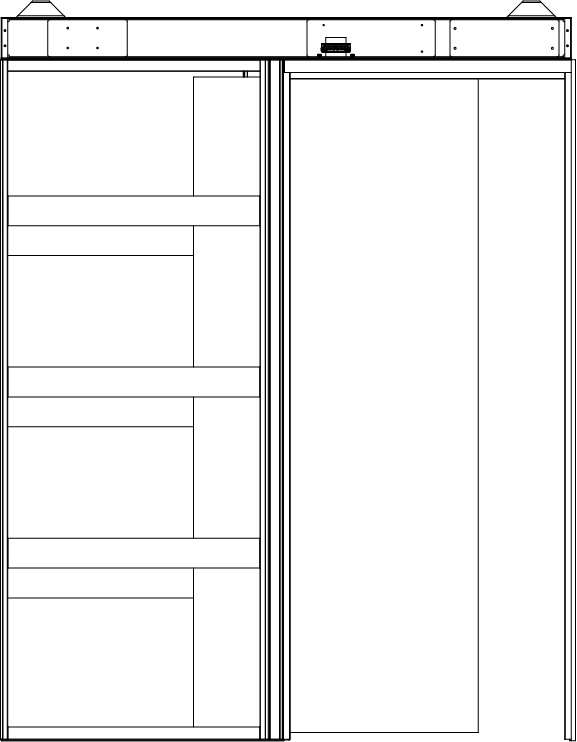

Integrated directly into the pocket door frame, the CS AutoCav® eliminates exposed headers and bulky external motors for a clean architectural finish. Compatible with a wide range of door styles, jamb options, switches, and sensors, it offers flexible design integration and easy installation.

Product Specifications

Dimensions

Min Size: Minimum door width of 30" (760mm)

Max Size: Custom sizes up to 60" x 96" (1524mm x 2440mm) per door

Max Weight (Single): 264lb (120kg) per door

Max Weight (Bi-Parting): 132lb (60kg) per door

Wall Framing: 3½" or 3⅝"(90mm) or 5½" (140mm)

Suitable Door Types

Can be specified with almost any choice of door that meets a minimum door width of 30” (760mm) and a maximum door width of 60” (1524mm).

Access - Paintable, removable access panel (only available for 3½" (90mm) wall framing)

Design & Safety Features

Easy setup with simple plug and play design.
Precision automation with adjustable speeds for a consistent, quiet experience.
Safety beams and continuous force feedback protect users during operation.
Compatible with a wide range of sensors and switches.

Configurations

Available in Single and Bi-Parting (Double Door) configurations

Access Control Options

A variety of access control options are available, from simple push button or overhead sensor to secure entry via third party access control or a combination of methods.

In the event of power failure, the door has a battery back up. Once battery back up is drained, the door can be manually opened. Example activation devices:

Handwave Sensor
PDL Switch
Dry Wire to connect to 3rd party smart home or building management system
Heavy Duty Push Button Access
Overhead Motion Sensor

Detail Options

Click on the drop downs below to see suitable door configurations, finishing details, and activation devices for this product.

Door Configurations

Jamb Details

Activation Devices

Downloads

Specification Sheet Site Measure Form Installation Manual AutoCav 3 ½” – with pocket frame (CAD PDF)AutoCav 3 ½” - with pocket frame (CAD DWG)AutoCav 5 ½” – with pocket frame (CAD PDF)AutoCav 5 ½” – with pocket frame (CAD DWG)CS AutoCav - Single (Revit)CS AutoCav - Bi-Parting (Revit)

FAQs

What input and output functionality does the CS AutoCav come with as standard?

For Inputs, it comes with your choice of up to 5 activation devices with functions selected from: open cycle, hold open, two types of locking function, open while locked (overrides lock), and emergency open.

For Outputs, it comes with a door locked and door closed output for Building Management System connection.

What operational settings are customizable?

There are a range of functions you can customize:

Open cycle time: adjustable between 0-10s
Closing speed: 100-500 mm/s
Slow close distance (e.g. how far from reaching open and close will it slow down): adjustable between 0 - 55 mm

Can the AutoCav integrate with a building management/security system?

Yes, as standard the unit will come with door closed, door locked and emergency open. If integration with building management or smart home system is needed this is achievable via specification of a Dry Wire activation device (ActDev001).
