CS AutoCav

Transform your living space or commercial environment with the CS AutoCav® automatic sliding door system. The CS AutoCav integrates automation into the cavity itself, preserving clean lines and uninterrupted design intent. This cutting-edge automated cavity slider is designed for straight forward installation and comes with a wide range of customisable operational configurations to choose from.

No exposed pelmets.
No oversized external motors.
No compromise on aesthetics.

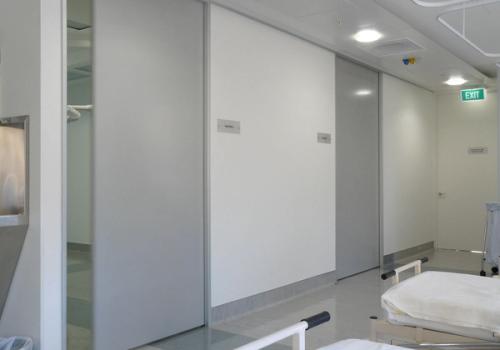

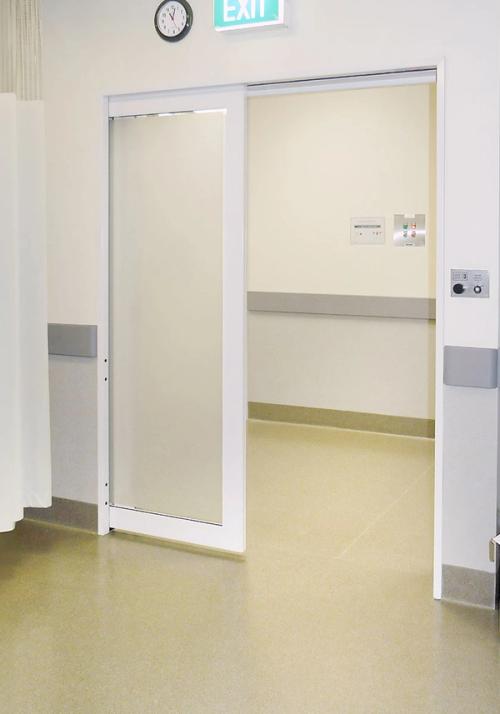

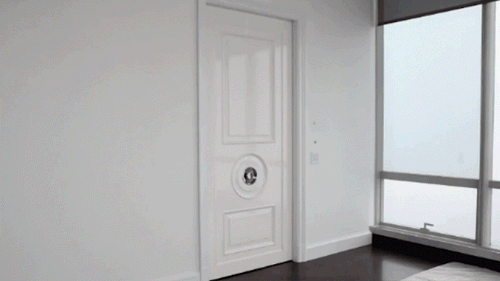

Just a sleek sliding door that opens effortlessly at the touch of a button, wave of a hand, or integrated system command. Suitable for both residential and commercial settings with a wide range of button, sensor and switch options to select from, as well as, jamb options and door styles to meet your project needs.

The CS AutoCav® offers reliable performance with durable components, external UPS, safety beam sensors and more.

Product Specifications

Automatic Units - AutoCav 140 Residential Spec Drawing

Features

Maximum Size - Door sizes up to 2400mmm High x 1100mm Wide & up to 38mm thick. Minimum door width of 760mm. If larger door required contact CS Sales Team.

Wall Framing - 90mm & 140mm

Maximum Door Weight - 120kg in total (for bi-parting 60kg per door)

Access - Paintable, removeable access panel (only available for 90mm wall framing)

How to specify (example)

Product: ~ CS AutoCav Cavity Slider
Location: ~ D3
Door leaf dimensions: ~ 2400mm x 1200mm
Door type: ~ CS New Yorker 3H Lite
Door finish: ~ Natural Anodised/Clear Glass
Single or Bi-Parting: ~ Single
Operation: ~ Handwave Sensor LHS & RHS plus Dry Wire to building management system for access control and locking
Jamb type & finish: ~ AluSealed/Nat Anodised
Framing material & size: ~ 90mm timber framing
Wall lining thickness: ~ 13mm
Access panel: ~ Right Hand Side

Activation Packs

A variety of access control options are available, from simple push button or overhead sensor to secure entry via third party access control or a combination of methods. In the event of power failure, the door has a battery back up. Once battery back up is drained the door can be manually opened. Example activation devices:

Handwave Sensor
Standard Light Switch
Dry Wire to connect to 3rd party smart home or building management system
Accessible Toilet Control Panel
Heavy Duty Push Button Access
Overhead Sensor

Detail Options

Click on the drop downs below to see suitable finishing details, operating functions and suitable doors for this product.

Door Configurations

Jamb Details

Specialised

Suitable Door Types

Accessories

PDL Switch

Downloads

Brochure Site Measure Form Installation Instructions AutoCav 90 AU (DWG)AutoCav 90 AU (CAD PDF)AutoCav 140 AU (DWG)AutoCav 140 (CAD PDF)

FAQs

What input and output functionality does the CS AutoCav come with as standard?

For Inputs it comes with your choice of up to 5 activation devices with functions selected from: open cycle, hold open, two types of locking function, open while locked (overrides lock) and emergency open.

For Outputs it comes with door locked and door closed output for Building Management System connection.

What operational settings are customisable?

There are a range of functions you can customise:

Open cycle time: adjustable between 0-10s
Closing speed: 100-500 mm/s
Slow close distance (e.g. how far from reaching open and close will it slow down): adjustable between 0 - 55 mm

Can the AutoCav integrate with a building management/security system?

Yes, as standard the unit will come with door closed, door locked and emergency open. If integration with building management or smart home system is needed this is achievable via specification of a Dry Wire activation device (ActDev001).
