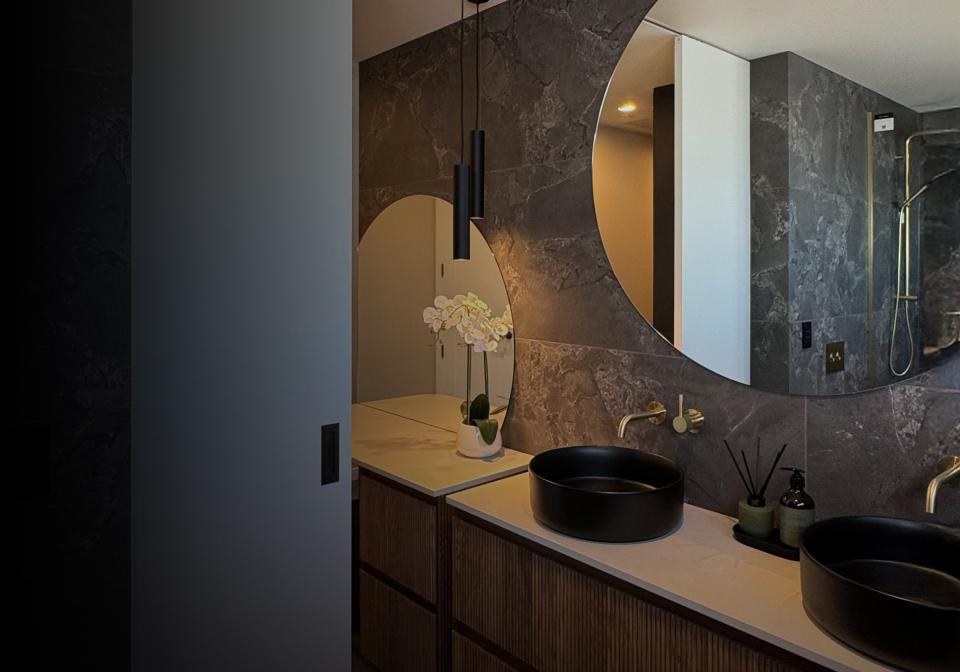

CS Cavity Slider Pocket Frame within Bathroom

Wet Area Cavity Slider Solutions

Cavity sliders are a practical space saving and design-led choice for bathrooms, ensuites and other wet areas. When installed with the correct materials and waterproofing the CS Wet Area Cavity Slider solutions can be tiled onto, can form part of the shower enclosure and have accessories, such as, towel rails attached to the cavity pocket.

Specifications
Downloads

Wet Area Cavity Slider Selector

Select the right cavity slider for your wet area project. Whether you are tiling, require waterproofing or installing into an H3.2 treated timber frame find out which CS Cavity Slider you need.

When installing a CS Wet Area Cavity Slider solution it’s critical to ensure correct waterproofing guidelines are followed as per manufacturer guidelines (e.g. Aqualine and Villabord).

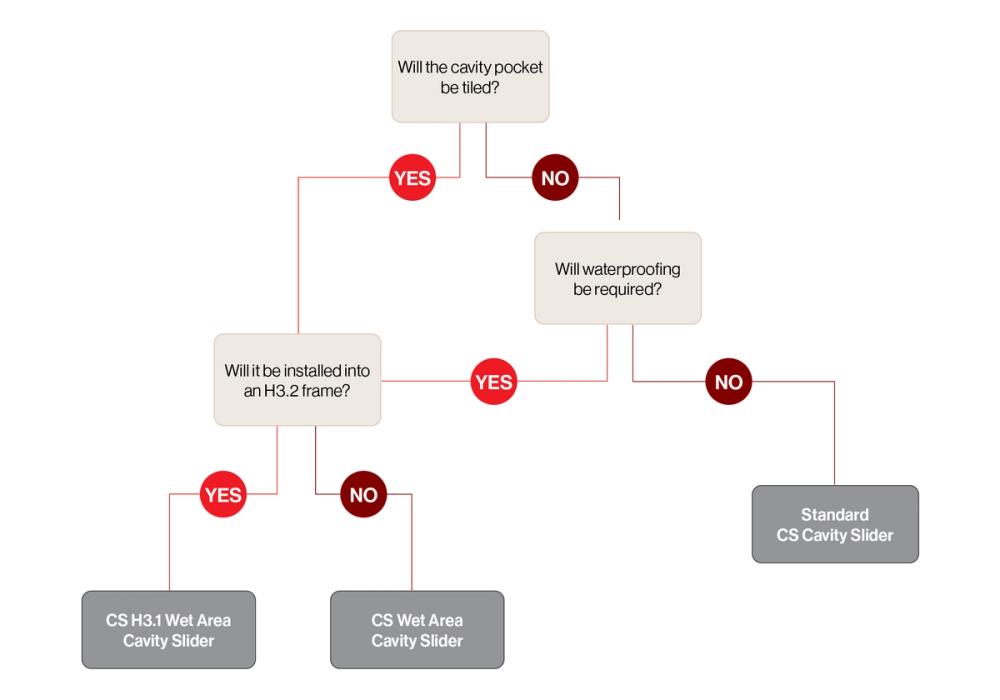

Wet Areas cavity slider decision tree

Product Specifications

CS BraceWall Specification Drawing

Features - CS Wet Area Cavity Slider

The CS Wet Area Cavity Slider can be tiled onto and form part of the shower enclosure pocket.

How to Specify (example)

Product: ~ CS Wet Area Cavity Slider

Location: ~ Bathroom 1

Door leaf dimensions: ~ 2200 x 860

Door type: ~ 38mm door

Door finish: ~ Paint quality, flush

Single or Bi-Parting: ~ Single

Operation: ~ SofStop 50kg

Jamb type & finish: ~ Pine Flat for architraves

Framing size & material: ~ 90mm timber framing

Wall lining thickness: ~ 13mm

Handle type: ~ CL205 Privacy

CSH3.1 Wet Area Cavity Slider Specification Drawing

Features - CS H3.1 Wet Area Cavity Slider

The CS H3.1 Wet Area Cavity Slider is recommended when installing a cavity slider into an H 3.2 treated timber frame. It can be tiled onto and form part of the shower enclosure pocket.

How to Specify (example)

Product: ~ CS H3.1 Wet Area Cavity Slider

Location: ~ Bathroom 1

Door leaf dimensions: ~ 2200 x 860

Door type: ~ 38mm door

Door finish: ~ Paint quality, flush

Single or Bi-Parting: ~ Single

Operation: ~ SofStop 50kg

Jamb type & finish: ~ H3.1 treated Pine Flat for architraves

Framing size & material: ~ 90mm H3.2 timber framing

Wall lining thickness: ~ 13mm

Handle type: ~ CL205 Privacy

Detail Options

Incorporate any of the following architectural detail options with your Wet Area Cavity Slider to create a specific look or to provide a unique solution:

FAQs

Can you tile directly onto the cavity pocket?

Yes, all CS Wet Area Cavity Sliders solutions can be tiled onto with correct waterproofing as per manufacturer guidelines.

Can I install a cavity slider inside a shower box/enclosure or directly exposed wet zone?

Yes. All CS Wet Area Cavity Slider solutions include a structural grade ply panel which meets the requirements of Villaboard and Aqualine recommendations for wall linings in wet areas.

Do you require different installation if using heavy tiles or full-height tiling?

The same recommendation applies for heavy tiles and full-height tiling which is to use one of CS Cavity Slider's Wet Area Cavity Slider which includes a ply panel and can be tiled directly onto.

How to ensure waterproofing of a cavity slider?

Firstly, select which CS Wet Area Cavity Slider you require and then ensure wall linings are installed as per manufacturer guidelines (e.g. Aqualine, Villaboard).

Does the wet area cavity sliders come with non-standard width and H3.1 treated jambs?

If you are tiling the cavity pocket non-standard width jambs can be specified. If installing the CS H3.1 Wet Area Cavity Slider, H3.1 treated jambs are supplied as standard. H3.1 jambs can be requested as an addition to any CS Cavity Slider.

What type of ply panel is used?

All CS Wet Area Cavity Slider solutions are supplied with a structural F11 grade ply panel that meets AS 1720.1-2010 without treatment.

Is the ply panel supplied with the CS Wet Area Cavity Sliders H3.1 treated?

No. The structural ply is adequate to meet AS 1720.1-2010 without treatment.

When is treated timber for a wet area cavity slider needed?

It’s recommended to specify H3.1 treated timber for the jambs, nogs and skirting when the cavity slider is going into an H3.2 treated timber frame. The CS H3.1 Wet Area Cavity Slider will meet these requirements. Elsewhere H 3.1 treatment is an optional extra.

How do I prevent door warping in damp environments?

All CS cavity doors come with steel reinforcement to resist warping. Additionally, you can request from CS Cavity Sliders HMR core doors for even greater moisture resistance.

Can you run underfloor heating into the cavity pocket?

Install flooring first, then sit the cavity pocket on the finished floor.

What handle options can be specified with the CS Wet Area cavity slider solutions?

All handles from the CS CaviLock range can be specified which include passage, privacy, magnetic and access options.
