Door Type
Cavity Slider
Hinged Door
Pivot Door
Overtaking Door
Features

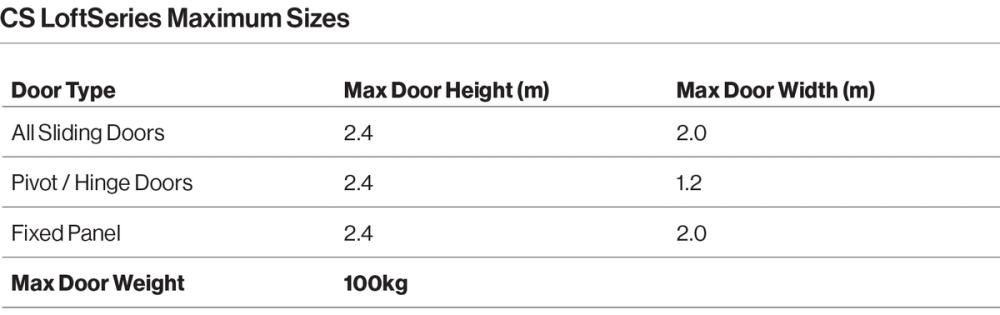

Maximum Size: Door sizes up to 2400mm High x 2000mm Wide (larger sizes may be available on request)
Frame & Finishing: Supplied with a slimline matte black frame and 6mm or 10mm transparent safety glass as standard.
Glazing & Options: Clear, opaque and reeded glass.
Hardware: A wide range of custom handles are available including: Flush Pull, D Pull styles and fixed and latch handle options (subject to chosen door type). Or specify your own handle (see Spec Guide).
How to Specify (example)
Product: CS Loft Series
Location: Dining
Application: Hinged Door with Fixed Panel LHS and RHS
Door type: 4H-4V lite
Dimensions: 2400mm x 900mm
Finish/colour: Matte Black
Glazing finish: 6.38mm clear
Hardware: CS fitted handle with tubular latch
Configuration Options
The CS LoftDoor has a variety of door type, lite configurations and fixed panel options. For more information on your specific design needs and configurations download the Spec Guide or Site Measure forms for more details and options.
