Features

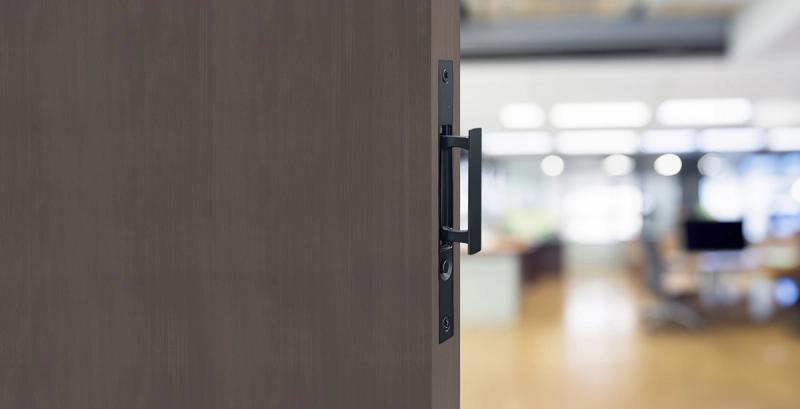

Push-Button Release Technology: The HB680 Pocket Door Edge Pull features a smooth spring-loaded push-button mechanism that discreetly deploys the hidden edge pull when needed.
Positive Grip For Heavy Doors: Hidden edge pull provides additional grip when needed. Provides effortless door operation and improved control when sliding the door.
Installation: Mortising for the case is required. See installation guide for more information.
Stylish and Modern: Available in a wide range of finishes, Halliday + Baillie handles are a popular contemporary and modern architectural option for sliding doors. Only two small screws that show on the edge pull's face plate.
Durability and Reliability: Crafted from die-cast zinc and brass, the HB680 Pocket Door Edge Pull features a slim 1.92” (49mm) body depth, making it ideal for sliding timber and aluminum passage doors. Its discreet, hidden edge pull design ensures smooth operation without rubbing against the door.
Applications: Suitable for pocket or sliding passage doors.
Technical Specifications
Door Thickness: 1-3/8" (35mm) when specified separately; 1-1/2" (38mm) when used as the HB620 passage set.

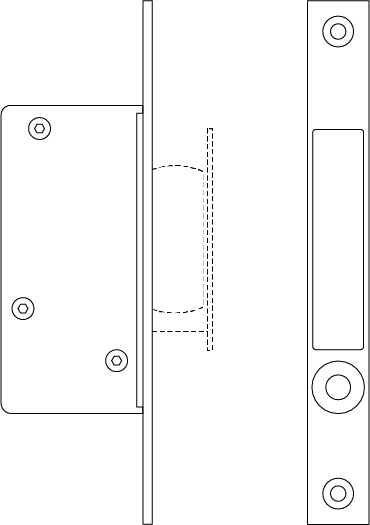

Size (overall): 6.69” (170mm) x 1.93” (49mm) x 0.79” (20mm)
Size (case to be mortised): 3.94” (100mm) x 1.92” (49mm) x 0.47” (12mm)
Handle Projection: 0.75" (19mm)
Suitable Door Types: Timber or Aluminum
Options: Passage Non-Latching
Finishes: Bright Chrome, Satin Chrome, Oil Rubbed Bronze, Satin Nickel, Matte Black, Satin Brass
