Features

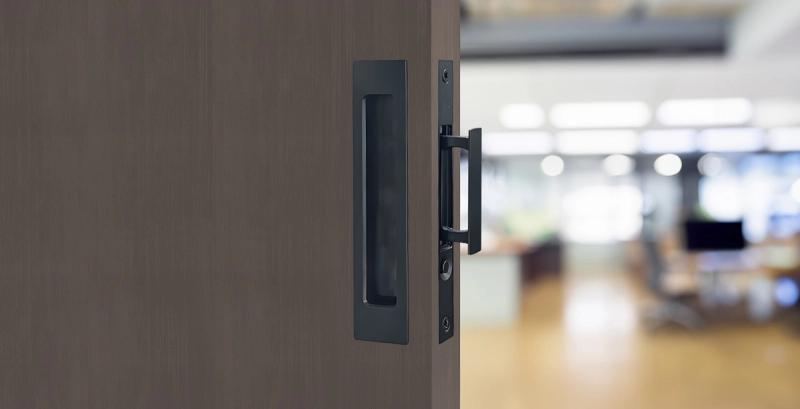

Integrated Performance (as a set): The HB620 Passage Set includes the HB680 Pocket Door Edge Pull with the HB660 Flush Pull. The HB680 Pocket Door Edge Pull is engineered to match the 7" (170 mm) height of the HB660 Flush Pull, ensuring visual consistency and a cohesive system.
Push-Button Release Technology: The HB680 Pocket Door Edge Pull features a smooth spring-loaded push-button mechanism that discreetly deploys the hidden edge pull when needed.
Positive Grip for Heavy Doors: The flush pull’s generous depth provides a secure, comfortable grip for easy sliding door operation. Paired with the pocket door edge pull, a discreet push-button release deploys additional grip when needed—providing effortless door operation and improved control when sliding the door.
Stylish and Modern: Available in a wide range of finishes, Halliday + Baillie handles are a popular contemporary and modern architectural option for sliding doors. Hidden screws keep the outside flush pull handle clean, while there are only two small screws that show on the edge pull's face plate. When installed in a pocket or sliding door, the handle sits flush with the opening.
Technical Specifications
Minimum Door Thickness: 1-3/8" (35mm) when used as a set.
Flush Pull Size: 6.69” (170mm) x 1.42” (36mm) x 0.55" (14mm)
Edge Pull Size (overall): 6.69” (170mm) x 1.93” (49mm) x 0.79” (20mm)
Edge Pull Size (case to be mortised): 3.94” (100mm) x 1.92” (49mm) x 0.47” (12mm)
Edge Pull Handle Projection: 0.75" (19mm)
Suitable Door Types: Timber or Aluminum
Options: Passage Non-Latching
Finishes: Bright Chrome, Satin Chrome, Oil Rubbed Bronze, Satin Nickel, Matte Black, Satin Brass
